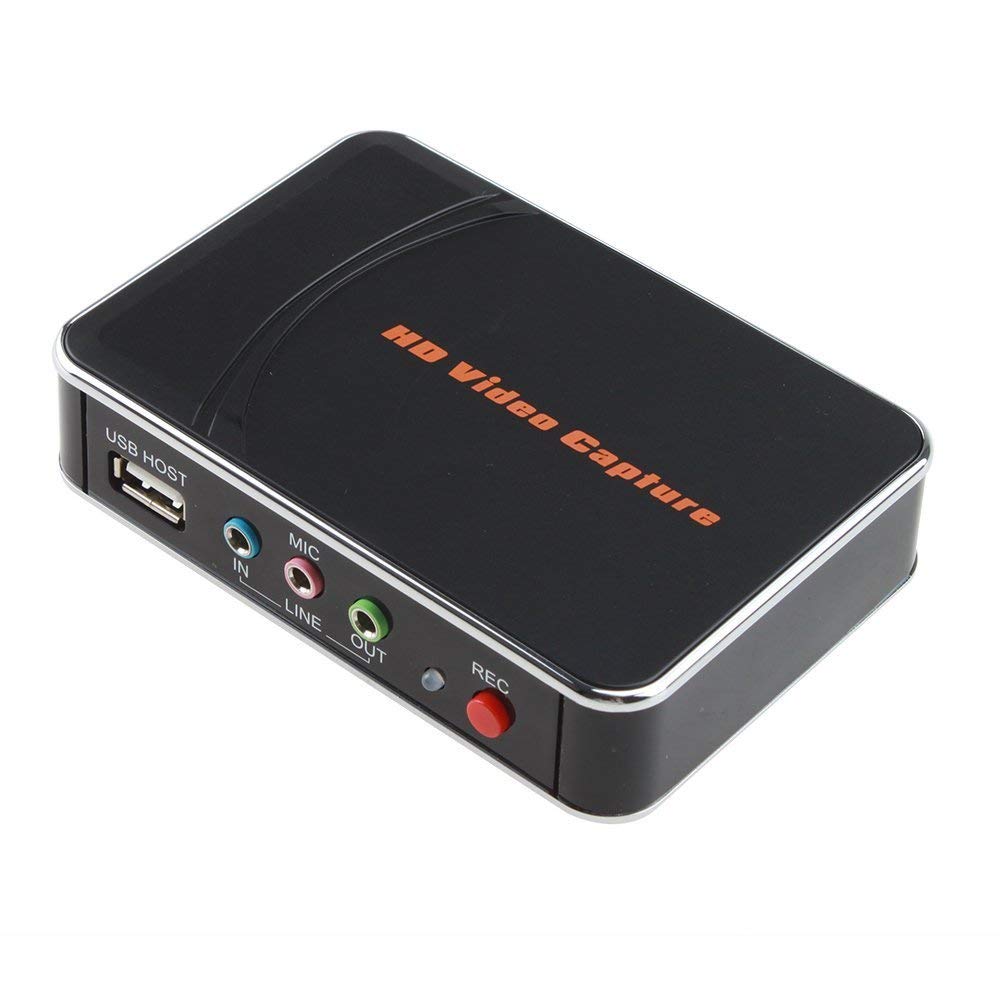

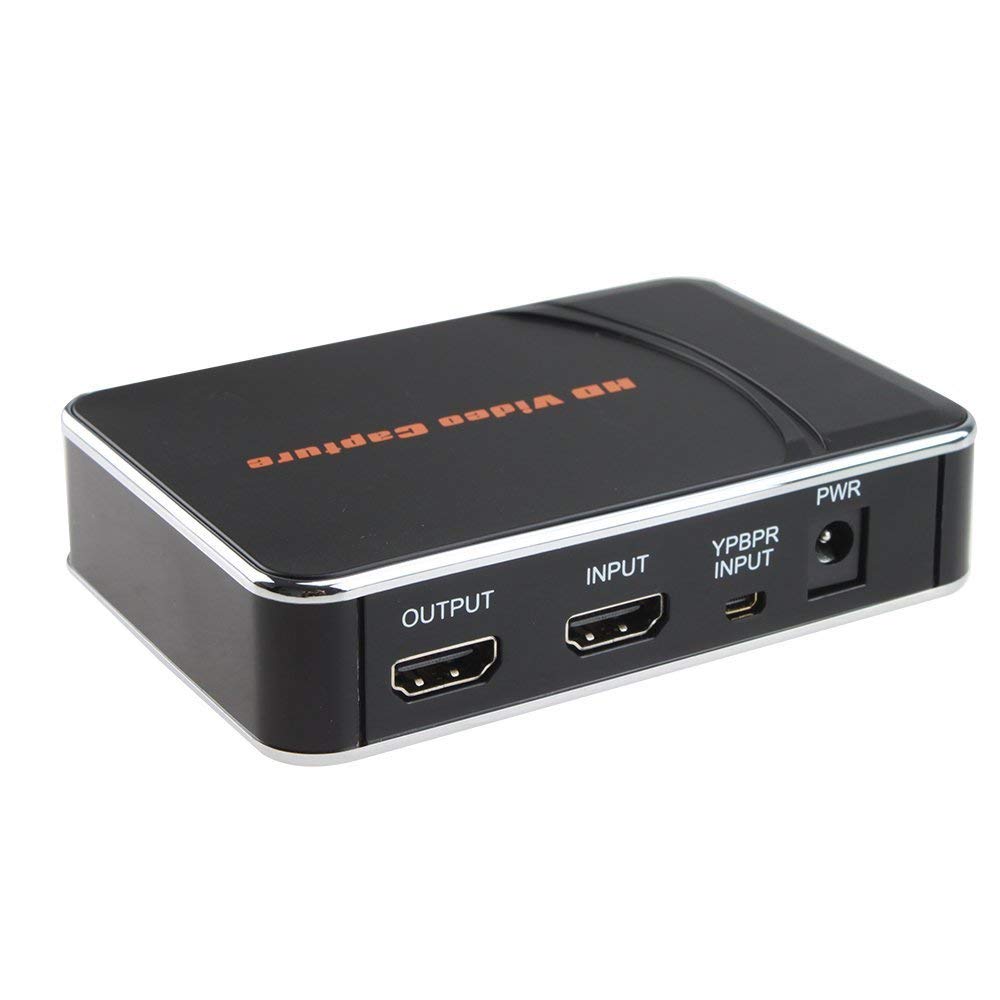

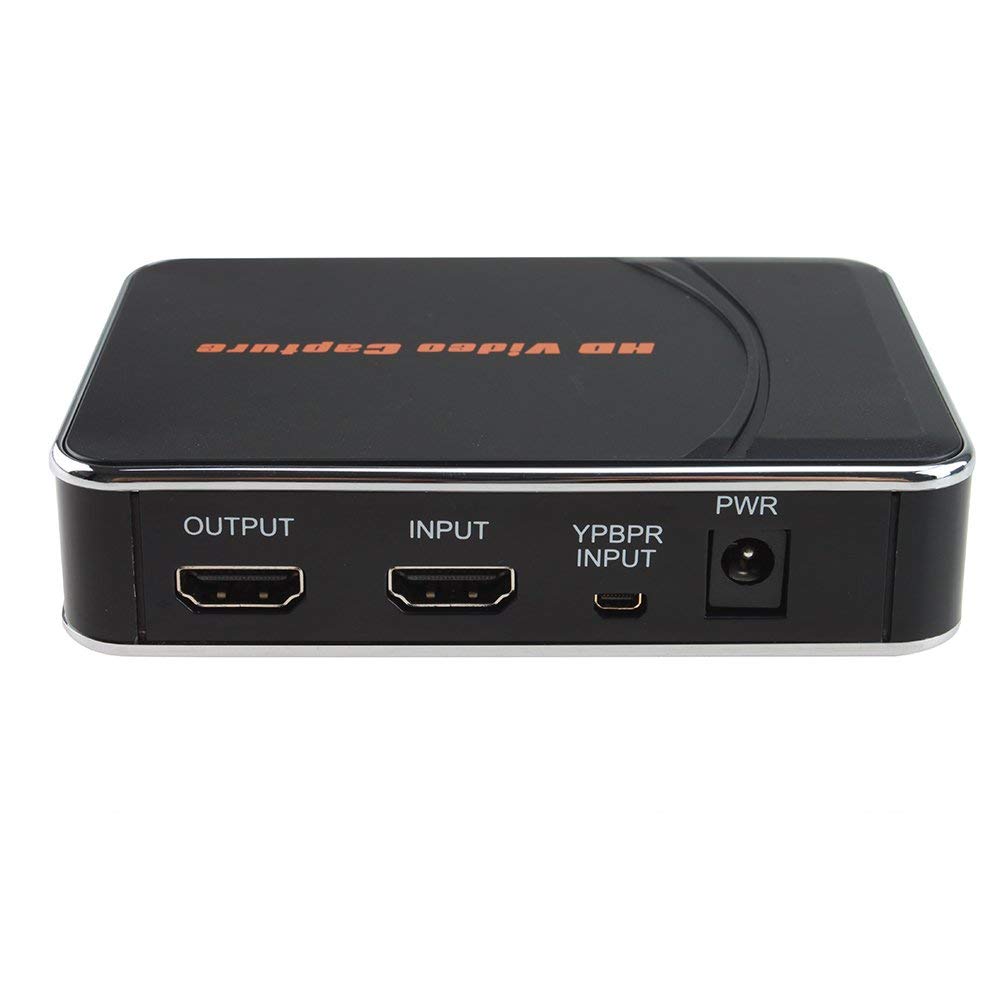

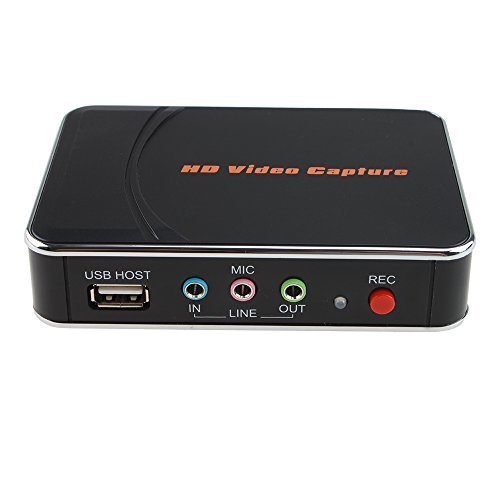

HD Game Capture HD Video Capture 1080P HDMI / YPBPR Recorder Xbox 360 & One/ PS3 PS4

Note:

1. it only works with device with component video input if you want to record your voice.
2. PS3/PS4 has disabled HDCP for firmware 1.7 or later, so you can easily record game play with ezcap HD VIDEO CAPTURE.
3. Used on PS4 needs to be set:Go settings---System disable "Enable HDCP" option
4. If it is used in blue-ray DVD, XBOX ONE, XBOX360 (HDMI RECORD), PS3 (YPBPR RECORD), you need to pick up a1*2 HDMI splitter or HDMI TO HDMI Converter.

Application Connections with Game Consoles:

• HDMI: WiiU, Xbox 360, Xbox One, PS4
• Component: WiiU, Xbox 360, PS3

Standards:

• Storage Media: USB Flash Disk, Portable Hard Disk (exFAT format is not supported)
• Input Resolution / Pass-through: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
• Capture Resolution: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
• Record Format: Video / AVI MPEG4, Audio / AAC Stereo
• Record Quality: Max 18Mbps@1080P 30fps
• Record File: Max 2GB/per file
• Record Place: Max 140MB/minute, 8.4GB/hour
• Power Supply: DC 5V 2A
• Dimension: 110 * 75 * 27 mm

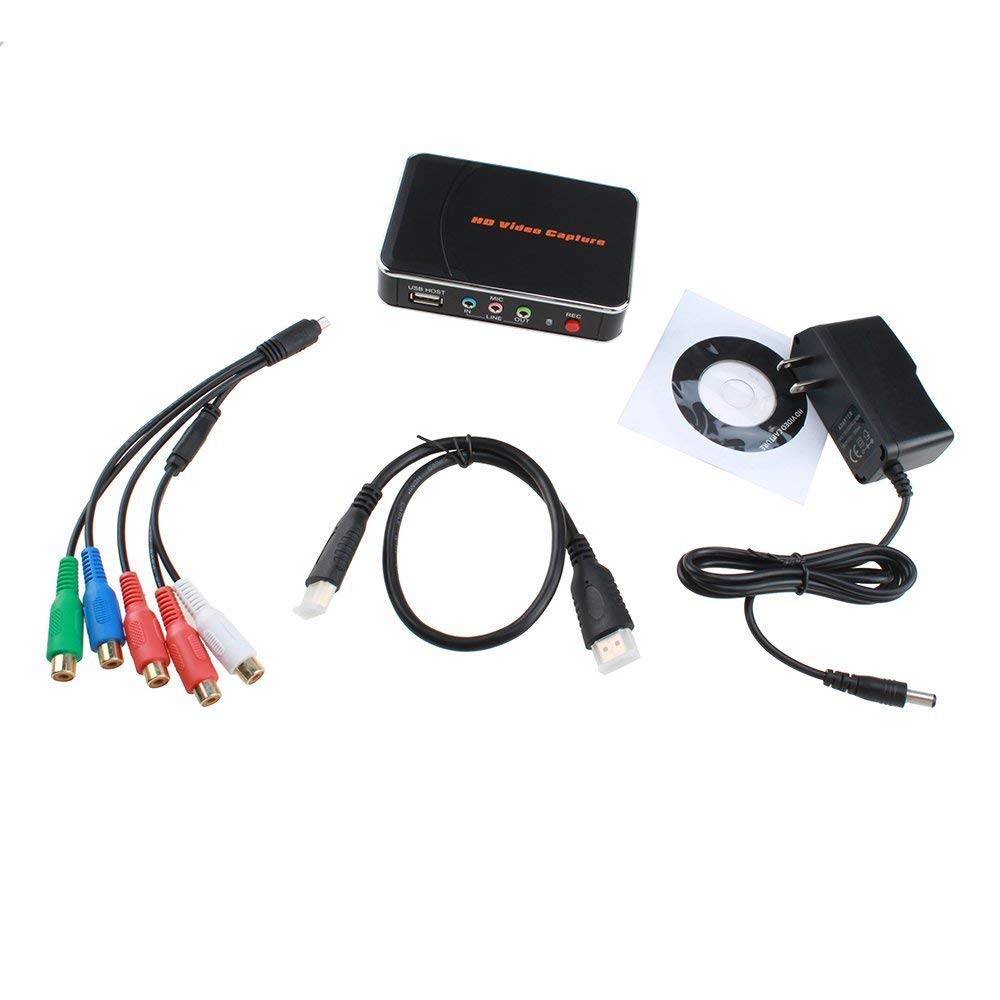

Package Contents:

• 1 * 1080P HDMI/YPbPr Recorder
• 1 * Component video audio connection cable
• 1 * HDMI cable
• 1 * Power supply
• 1 * Video editing software CD
